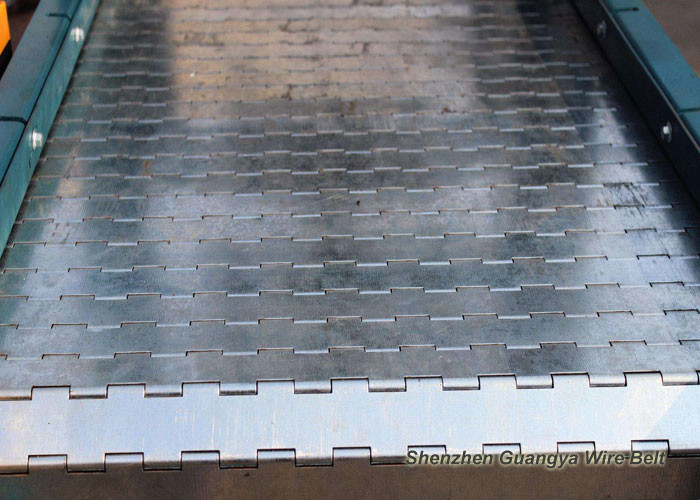

Stainless Steel Punching Chain Plate Conveyor Belt for Heavy Item Carrying
Stainless steel chain plate conveyor belt is popular belt choice for flat and light weight conveyor requirement. Belt technical properties can be followed by customer requirement with fast production.
Chain plate conveyor belt can be made by various metal, such as 304 316 316L stainless steel, high temperature resistance 310, 310s, 314, which can carry a lot of material, or bear greater impact load, can make all kinds of product assembly line, warehouse logistics line. The drive mode conveyor belt is single round, double chain wheel, friction type belt flat belt etc.
Quick view
- Belt production as customer's requirement, MOQ is not big is also available.
- Easy to make maintenance and install to conveyor production machine.
- Frame construction can be made by various metal.
- Wear-resisting and longer usage time or good durable.
Application
- Chain conveyor is designed to provide flexible conveying solutions for all industries, compact structure, more specifications, convenient installation, reliable operation.
- These conveyors have high weight capacity and will run at high speeds.
- They also minimise the need for multiple drives on large installations.
Chain plate can be with punched holeformation or direct pressed by CNC machine. Sizes can be defined according to customer specific requirements.
Plate conveyor belt properties
| Item Name | specifcation | Max | Min | Remark |
| Hinged belt | Width | 4.0m | 0.2m | include side chain width |
| Length | 30m | 1.0m | |
| Plate thickness | 5.0mm | 0.5mm | usual 1.0 - 3.0mm |
| Perforated hole dia | 10mm | 2.0mm | round shape |
| Chian pitch | 100.8mm | 12.7mm | |
| Support rod | 12.0mm | 4.0mm | common 6.0 and 8.0mm |
| Material grade | Q195 or 235 ss 201, 304, 316L, 430 | |
| Driven type | sprocket and chain | |
Chain plate conveyor belt Application
- Cleaning, conveying machinery conveyor.
- Ultrasonic cleaning conveyor.
- Food processing industry, dehydrated vegetables, frozen food iqf machine pretreatment mesh belt, chain network.
Plate conveyor belt advantages
- Temperature resistance, which can be used in extremely high and low temperatures.
- Corrosion and rust resistance make it possible be used in the corrosive environments.
- The baffles can be added onto the belt for convenient sorting and conveying.
- The side guards can be added onto the belt to prevent products from spillage.
- Chain link edge can ensure the smooth and high efficiency working.
- Curved perforated plate conveyor belt is available to suit more applications and equipment.
Wire Conveyor Belt FAQ
Q:what is the minimum order quantity?
A: 10Meters for each item
Q: what is the delivery time?
A: 10-20days after receiving the deposit
Q: what is the payment term?
A: 40% T/T in advance, the balance against the copy of B/L, also you can choose EXW in cash paid usd or rmb.
Q: can i order a sample?
A: of course, for the existing model we have, our factory would like to offer one or two pieces sample to customer and the air-freight charge shall be paid by customers; for customized model making shall be consulted.
Q: can we use our own shipping agent?
A:of couse you could.
Q: can you accept OEM service?
A: yes,OEM is acceptable, pls send email to us for more detail.
Q:If i want to visit your factory, which is the nearest airport?
A: Shenzhen International airport, it only take half an hours from Shenzhen airport to our factory.
Q: How do I order?
A: If you can visit our company, we can fix all technical details quickly by live discussion. We can also send you drawing so you can specify needed configuration. Once the wire belt structure is confirmed, we will sign contract. We accept T/T & L/C payment.
Q: How can I verify the belt?
A: Before delivery, you can send engineer to verify it by agreed technical design.
